제 품 소 개
Product Specifications
| DESIGN |
| ASME B 16.34 |
| API 6D, API 608 |
| BS 5351 |
| JIS B 2071 |
| STRUCTURE |
| BOLTED SIDE ENTRY |
| TOP ENTRY |
| RATING |
| CLASS 150 / 10k(0.98Mpa) |
| CLASS 300 / 20K(1.96Mpa) |
| CLASS 600 / 40K(3.92Mpa) |
| JIS 30K |
| CLASS 900 / 1500 / 2500 |
| DESIGN |
| 1/2" ~ 36" / 15 ~ 900 |
| 1/2" ~ 36" / 15 ~ 900 |
| 1/2" ~ 24" / 15 ~ 600 |
| 15 ~ 600 |
| 1/2" ~ 24" / 1/2" ~ 24" / 12" ~ 12" |
| APPLICATIONS |
| Chemical and Petrochemical plants |
| Oil and Gas Production |
| Power Generation |
| Various Liquids, Steam, Slurries |
| Solids and many other services |
| BODY MATERIAL |
| Carbon Steel |
| Stainless Steel |
| Duplex Stainless Steel |
| Super Duplex Stainless Steel |
| END CONNECTION |
| ASME B16.5 |
| ASME B16.25 |
| ASME B16.47 |
| DIN EN 1092-1 / JIS B 2220 |
| RF / FF / RTJ / BW |
| SEAT MATERIAL |
| Tungsten Carbide Coating |
| Chromium Carbide Coating |
| Stellite #6 |
| ENP |
| FACE TO FACE |
| ASME B16.10 |
| API 6D |
| JIS B2002 |
| KS B2308 |
| BORE |
| FULL BORE |
| REDUCER BORE |
| TEST |
| API 598 |
| JIS B 2003 |
| KS B 2308 |
| ISO 5208 |
| ANSI / FCI 70-2 |
| FEATURES |
| Superior Durability and Abrasion Resistance |
| Suitable for High Temperature and Pressure |
| Excellent Sealing Performance |
| Long Lifespan and Low Maintenance Costs |

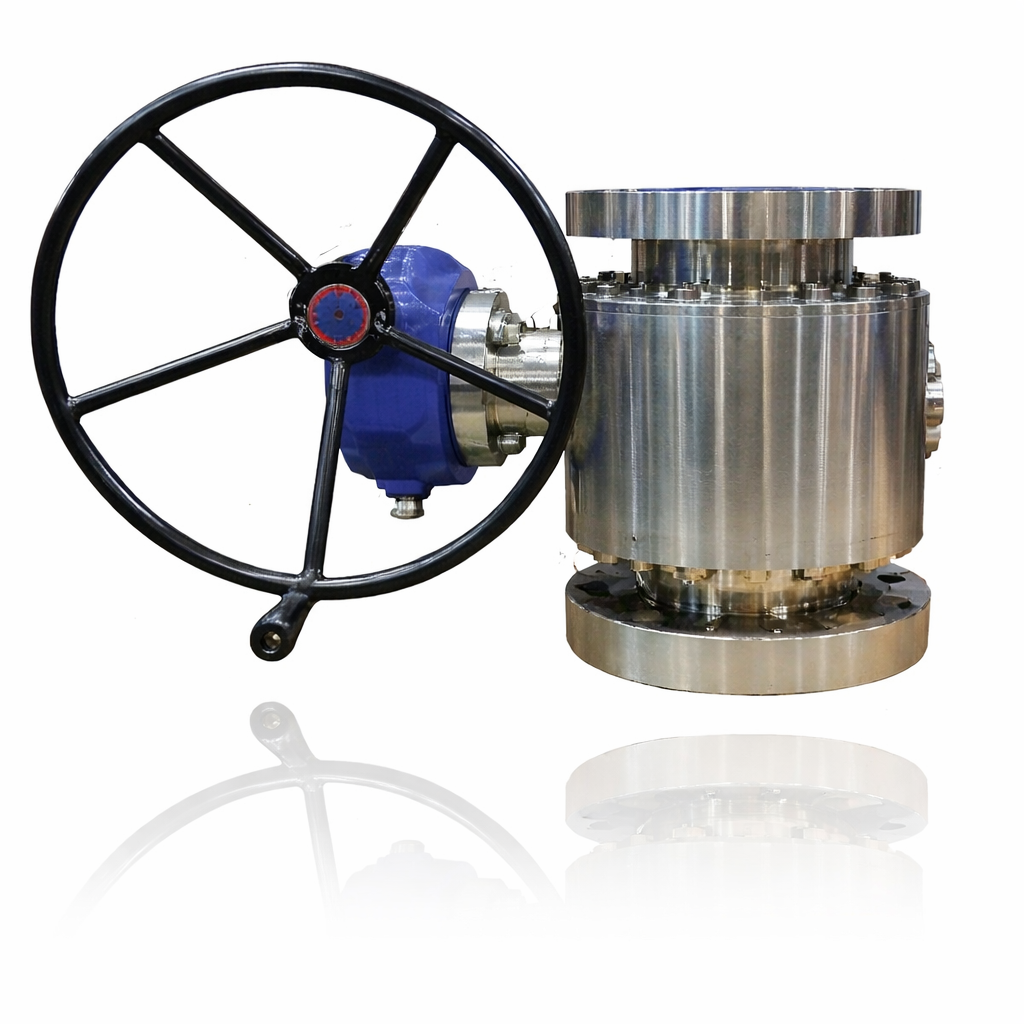

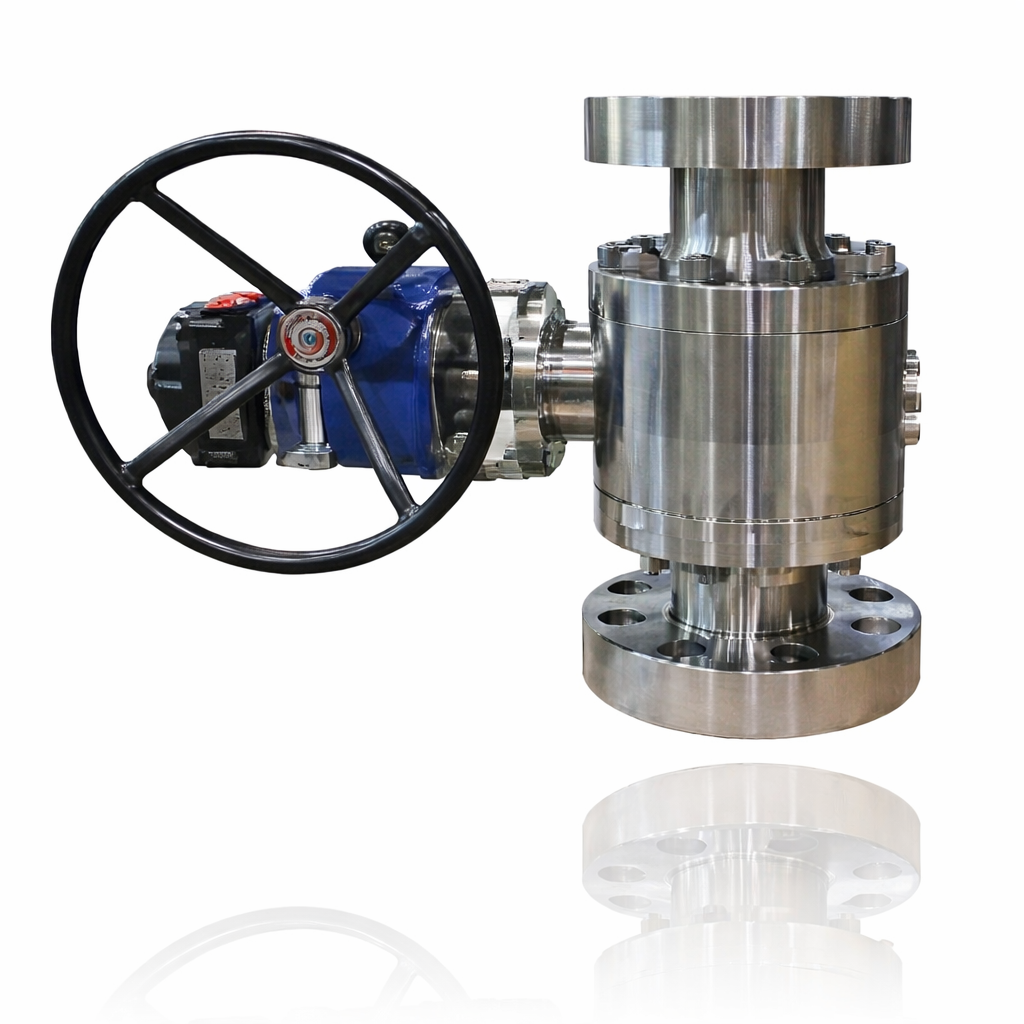

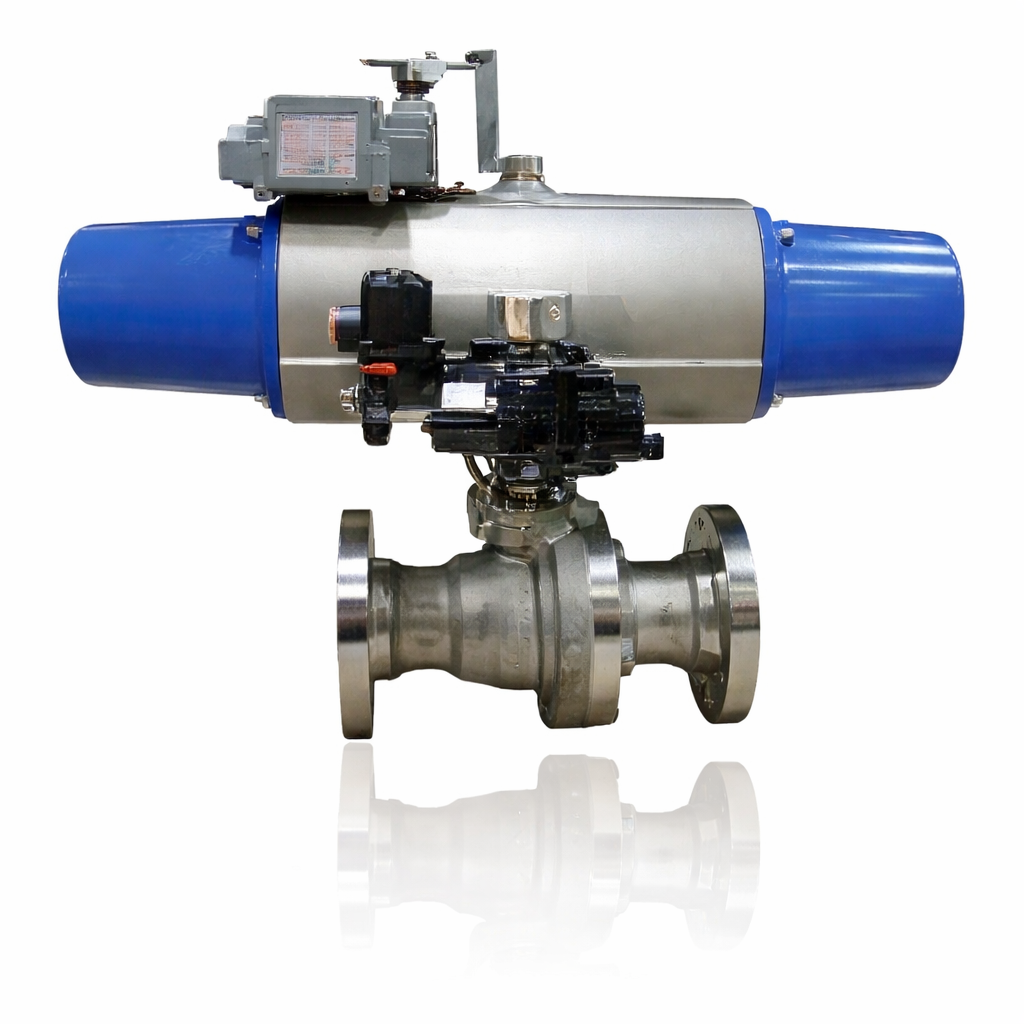

| Lever / Gear / POV / MOV |
