제 품 소 개
Two-Piece Ball Vlave

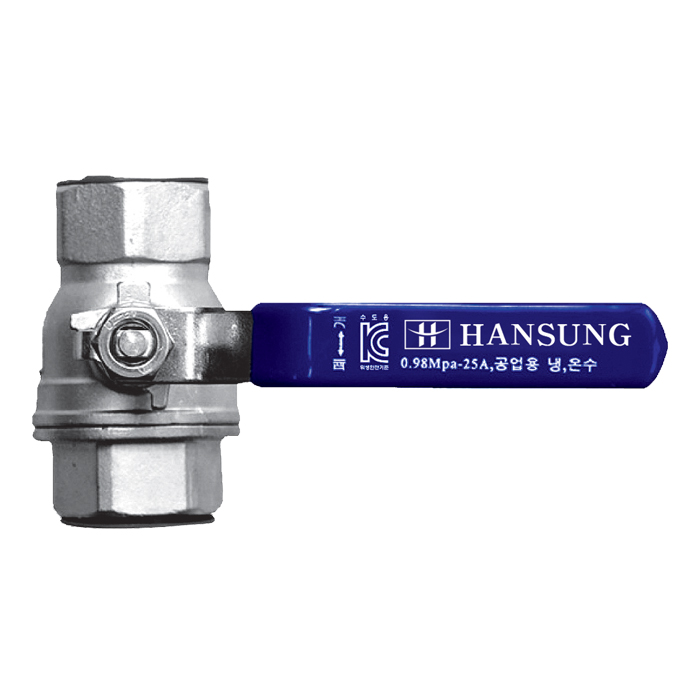

상품 사진
도면 사진
ONE-PIECE INNER THREAD BALL VALVE
| No | PART NAME | MATERIAL |
| 1 | Nut | 304 |
| 2 | Shells Pad | |
| 3 | Handle | 201 |
| 4 | Gland | 304 |
| 5 | Packing | PTFE |
| 6 | Thrust Gasket | PTFE |
| 7 | Stem | 304/316 |
| 8 | Seat | PTFE |
| 9 | Body | CF8/CF8M |
| 10 | Lock Nut | 304 |
| 11 | Washer | 304 |
| 12 | Ball | 304/316 |
| 13 | Seat | PTFE |
Main External and Connecting Dimensions
| NPS | D | L | H | E |
| 1/4 | 5 | 41 | 35 | 65 |
| 3/8 | 7 | 45 | 37 | 70 |
| 1/2 | 9 | 55 | 41 | 85 |
| 3/4 | 12 | 59 | 44 | 90 |
| 1 | 15 | 70 | 45 | 115 |
| 1 1/4 | 20 | 76 | 49 | 115 |
| 1 1/2 | 25 | 84 | 56 | 140 |
| 2 | 32 | 97 | 62 | 140 |
| 2 1/2 | 38 | 124 | 95 | 180 |
| 3 | 49 | 148 | 105 | 180 |
| 4 | 65 | 185 | 117 | 220 |
Main Parts and Materials
| No | PART NAME | MATERIAL |
| 1 | Nut | 304 |
| 2 | Shells Pad | 304 |
| 3 | Handle | 201 |
| 4 | Gland | 304 |
| 5 | Packing | PTFE |
| 6 | Thrust Gasket | PTFE |
| 7 | Stem | 304/316 |
| 8 | Seat | PTFE |
| 9 | Bonnet | CF8/CF8M |
| 10 | Gasket | PTFE |
| 11 | Ball | 304/316 |
| 12 | Body | CF8/CF8M |
Main External and Connecting Dimensions
| NPS | D | L | H | E |
| 1/4 | 10.5 | 50 | 59 | 95 |
| 3/8 | 12 | 50 | 59 | 95 |
| 1/2 | 15 | 56 | 61 | 115 |
| 3/4 | 20 | 65 | 67 | 125 |
| 1 | 25 | 76 | 74 | 150 |
| 1 1/4 | 32 | 89 | 82 | 160 |
| 1 1/2 | 38 | 97 | 99 | 190 |
| 2 | 49 | 110 | 105 | 200 |
| 2 1/2 | 63 | 149 | 120 | 265 |
| 3 | 76 | 172 | 137 | 310 |
| 4 | 96 | 214 | 157 | 310 |
Main Parts and Materials
| No | PART NAME | MATERIAL |
| 1 | Nut | 304 |
| 2 | Shells Pad | 304 |
| 3 | Handle | 201 |
| 4 | Gland | 304 |
| 5 | Packing | PTFE |
| 6 | Thrust Gasket | PTFE |
| 7 | Stem | 304/316 |
| 8 | Seat | PTFE |
| 9 | Bonnet | SSC13/SSC14 |
| 10 | Gasket | PTFE |
| 11 | Ball | SSC13/SSC14 |
| 12 | Body | SSC13/SSC14 |
Main External and Connecting Dimensions
| NPS | D | L | H | E |
| 8A | 10 | 50 | 85 | 52 |
| 10A | 10 | 50 | 85 | 52 |
| 15A | 15 | 56 | 90 | 53 |
| 20A | 20 | 65 | 100 | 58 |
| 25A | 25 | 76 | 120 | 68 |
| 32A | 25 | 78 | 120 | 70 |
| 40A | 32 | 89 | 140 | 76 |
| 50A | 38 | 99 | 160 | 85 |
| 65A | 63 | 149 | 250 | 126 |
| 80A | 76 | 172 | 250 | 136 |
| 100A | 96 | 214 | 280 | 157 |
